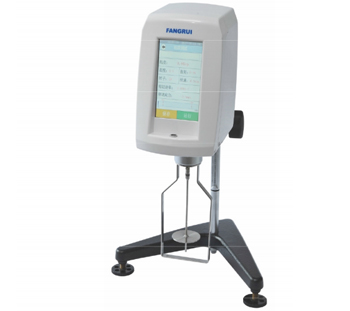

MLT系列触摸屏粘度计完美融入触屏技术，用一种时尚现代的高技术来快速、准确、直观地测量粘度，功能强大。5英寸的超大彩色触摸屏可全面、形象地显示各种参数和工作状况。具有测量参数多、显示内容丰富，操作便捷、读数直观、测量精度高的特点，可完全替代同类型进口仪器，引领着国内粘度计的科技新潮流。
Series MLT touch screen viscometer is perfectly integrated with the touch screen technology,and the viscosity can be measured with a fashion, modern and high technology rapidly, accurately and directly. Various parameters and working conditions can be completely and directly displayed on the 5 inch ultra-large colorful touch screen. Various parameters can be measured, displayed and read directly in high accuracy,the instrument can be displayed conveniently, used to replace similar imported products,and it leads the new trend of science and technology of viscometers made in China.
机器测试界面部分截图（Instrument measuring interface）
机器测试界面部分截图（Instrument measuring interface）
MLT-DV2T系列 中高粘度样品首选机型（Series MLT-DV2T Medium and High Viscometer）
|
5英寸全彩色触摸屏显示 •全新的用户界面 •加强型控制 •实时趋势显示 •支持中英文操作界面 |
5 inch full colorful touch screen •Brand new user's interface •Enhanced control •Real-time trend display •CH/EN operating interface |
|
显示信息 •粘度 cp •温度 ℃ •运动粘度值 m m/s 2 •密度 g/cm³ •扭矩 % •剪切率/剪切应力 •转速/转子 |
Displayed information •Viscosity cp •Temperature ℃ •Dynamic viscosity mm/s2 •Density g/cm³ •Torque % •Shear rate / shear stress •Rotating speed/rotor |
|
内置式选项 •定时测量 •可编程QC上下限警报 •自动量程显示 |
Internal options •Timed measuring •Programmable QC upper and lower limit warning •Automatic measuring range displaying |
|
双向的RS-232接口 提供可选择电脑控制及自动数据采集功能 |
Duplex RS-232 interface Optional computer control and automatic data collecting |
|
仪器主要组成： •粘度计主机 •R2~R7号转子一套6根 •转子保护架（HA及HB机型不配置） •三角底座、立柱各一件 •电源适配器 •仪器铝盒金箱 |
Instrument main components: •Viscometer host machine •6 rotors from R2~R7 •Rotor protective frame(not for model HA and HB) •Triangular base and column •Power adaptor •Aluminum alloy case |
|
可选附件： •R1号转子 •0号转子 •恒温循环浴槽 •温度探针 •粘度标准液 •玻璃夹套杯 •软件 •打印机 |
Optional accessories: •Rotor R1 •Rotor R0 •Constant temperature circular bath •Temperature probe •Viscosity standard liquid •Glass jacket cup •Software •Printer |
| 型号 Model | MLT-DV2TRV | MLT-DV2THA | MLT-DV2THB |
| 控制/显示方式 control/Display mode |
5英寸彩色触摸屏 5inch colorful touch screen |
||
| 测量范围mPa.s Measuring range | 100*~4000万 | 200*~8000万 | 800*~32000万 |
|
转速 Rotating speed(rpm/min) |
0.1~200无级变速，共有2000种转速阶梯可选 0.3~100 stepless speed change,998 rotating speed steps |
||
|
转子 Rotor |
R2#,R3#,R4#,R5#,R6#,R7# | ||
|
样品用量 Sample consumption |
500ml | ||
|
测量误差 Measuring error |
±1%（满量程） ≤±1%（full range） |
||
|
重复误差 Repeatability error |
±0.5% | ||
|
显示剪切应力/剪切速率 Shear stress/ shear rate display |
标配 Standard configuration |
||
|
定时功能 Timing function |
标配 Standard configuration |
||
|
粘度曲线 Viscosity curve |
实时显示粘度曲线 viscosity curve real-time display |
||
|
运动粘度 Dynamic viscosity |
需输入样品的密度后可显示 Displayed after the sample density is entered |
||
|
温度测量功能 Temperature measuring |
标配温度探头接口（需要选配温度探头） Standard temperature probe interface (the optional temperature probe is necessary) |
||
|
自动扫描功能 Automatic scanning |
自动扫描并推荐转子与转速的最佳组合 Automatic scanning,optimal combination of rotor and rotating speed recommended |
||
|
最大测量范围 Maximum measuring range |
自动显示所选择的转子与转速的组合可测量的粘度范围 The maximum viscosity value range measurable for the chosen combination of rotor and rotating speed can be automatically displayed |
||
|
保存测量结果 Measurement result saving |
最多可保存30组数据（含粘度、温度、转子、转速、剪切速率、剪切应力、时间、密度、运动粘度） 30 groups of data can be saved at maximum (Including viscosity,tempperature,rotor,rotating speed,shear rate,shear stress,time,density,dynamic viscosity,etc) |
||
|
打印 Printing |
数据、曲线可打印（标配有打印接口，需选购打印机） Data and curve printable（standard printing interface，optional printer） |
||
|
恒温部件 Constant temperature |
选件（含各种粘度计专用恒温槽、恒温杯） Optional（Including various viscometer constant temperature bath and constant temperature cup） |
||
|
工作电源 Power supply |
110V~220V、60Hz/50Hz | ||
|
外形尺寸 External dimensions |
300×300×450（mm） | ||
|
净重 Net weight |
4Kg | ||
检测低于此下限粘度值时需选配R1转子 Rotor R1 must be used when the viscosity to be measures is below this lower limit
单位转换 Unit conversion: 1Pa.s=1000 mpa.s 1p=100mpa.s 1mpa.s=1cp
